The pneumatic wafer butterfly valve uses air as the driving force of the actuator, and switches through single acting or double acting Actuator. It can be used for 4-20ma analog adjustment of valve opening after the positioner is assembled.
Pneumatic control wafer butterfly valve

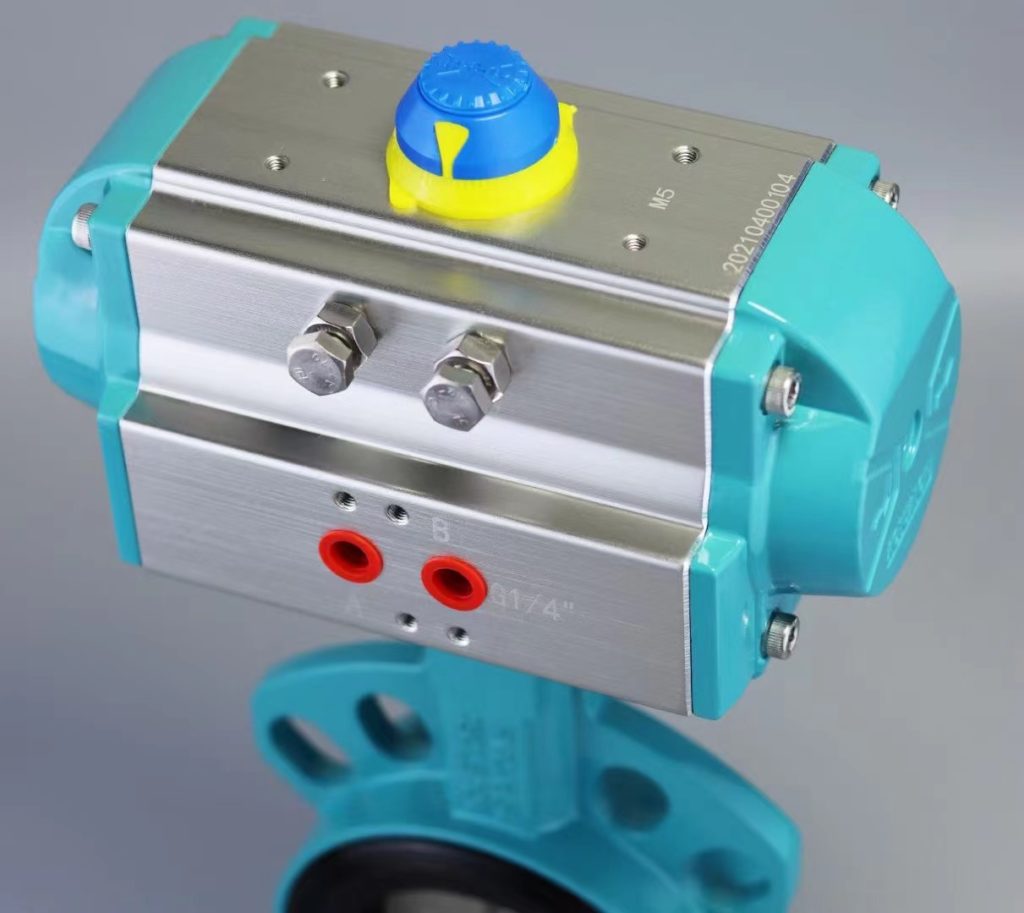

The actuator is made of aluminum alloy and stainless steel screws. The outside is painted with epoxy resin. The top is equipped with a switch position indicator. The double action is without a spring, and the single action is equipped with springs on both sides. The actuator can be countered by the spring to control the opening or closing of the butterfly valve
Pneumatic Actuator wafer butterfly valve

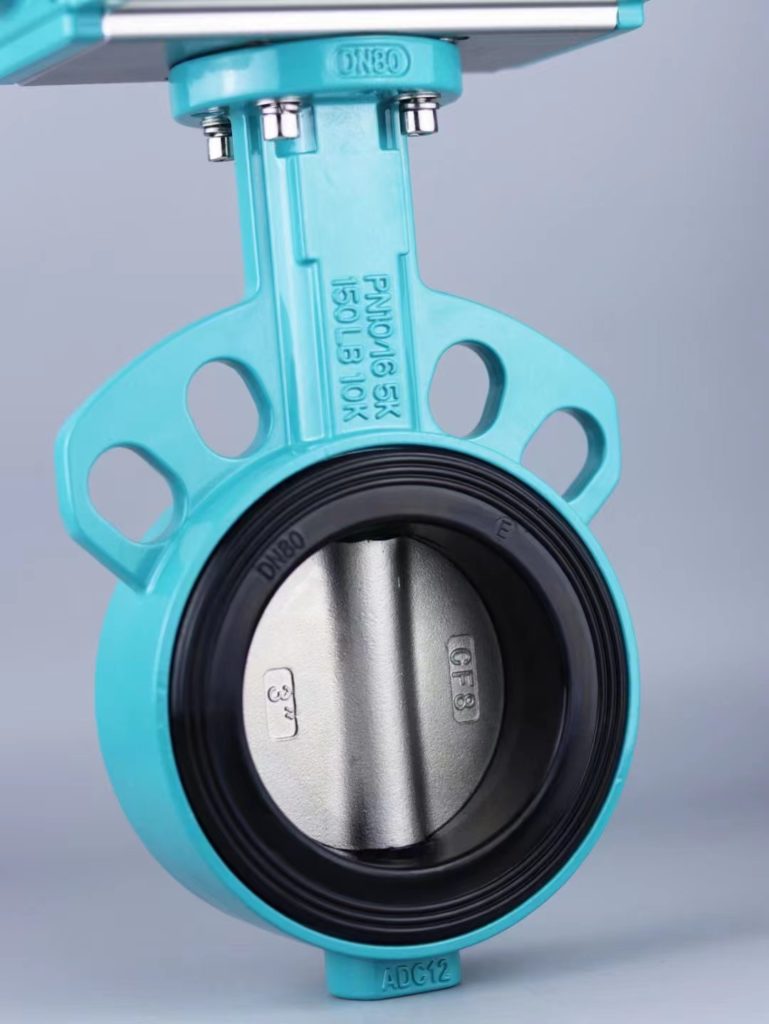

The upper flange connecting plate of the valve body of the pneumatic wafer butterfly valve complies with ISO 5211 standard and is fully applicable to various actuators and driving devices.
The valve body can be made of aluminum alloy, ductile iron, cast steel, stainless steel, etc
The valve plate can be stainless steel 304, 316, 2507, lined valve plate, etc
Valve seat can be PTFE, EPDM, VITON, etc
pneumatically operated wafer butterfly valve
Actuator type: double acting, single acting
Valve body material: aluminum alloy, ductile iron, cast steel, stainless steel, etc
Valve plate material: stainless steel, rubber lining, fluorine lining, etc
Valve seat material: EPDM, PTFE, NBR, VITON, etc
Upper flange standard: ISO 5211
Optional accessories: Positioners, Air directional control valve, Air Filter Regulator, limit switch
The connection dimensions of our pneumatic wafer butterfly valves can be made of American, European, Japanese, German and other standards.
Air driven wafer butterfly valve
As long as you use 3-7KG air supply pressure to inject into the cylinder, you can perfectly control the butterfly valve opening and closing, and the opening and closing speed is within 3 seconds!
