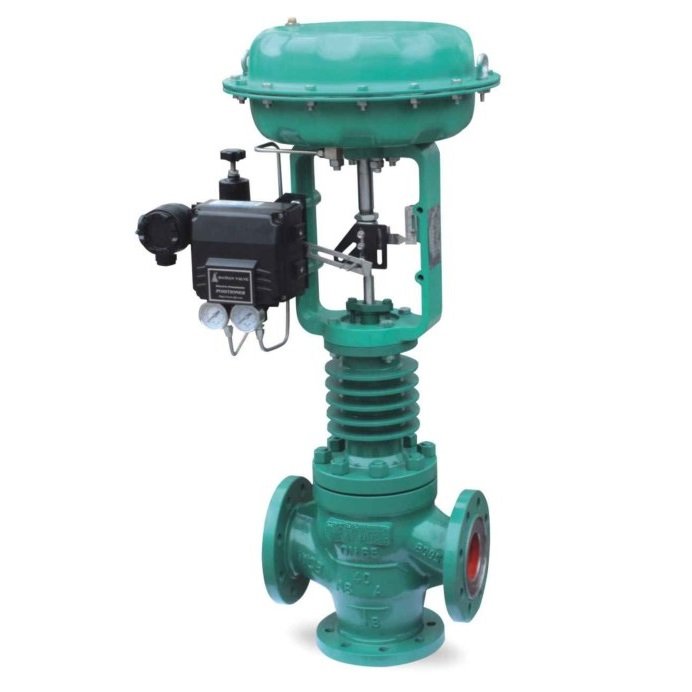

Pneumatic 3-way regulating valve There are two forms of confluence and diversion, which can be widely used instead of two two-way valves and one three-way connection in some occasions.
Pneumatic three-way regulating valve
Realize the adjustment of pressure, flow, temperature, liquid level and other parameters,
The actuator is a membrane type actuator, the valve core adopts a cylindrical thin-walled window, and is guided by the side of the valve core, which has good stability and low noise.
Body form: three-way cast ball valve body
Spool form: three-way double-seat spool
Size: DN20-DN300 NPS 3/4″-12″
Pressure class: PN16-PN100 Class150-600
Connection: Flange, RF/RTJ
Flange distance: according to IEC 60534
