The JIS 10K Flange Y-Type Strainer is used to remove impurities in the medium to protect the normal use of valves and equipment. The Y-type filter has the characteristics of advanced structure, small resistance and convenient sewage discharge.
stainless steel Hexagonal Bonnet JIS 10K Y-Type Strainer Flanged
stainless steel Flange Bonnet (bolted bonnet) JIS 10K Y-Type Strainer
The suitable medium of JIS 10K Y-Type Strainer Valve can be water, oil and gas. Generally, the water network is 18-30 mesh, the ventilation network is 10-100 mesh, and the oil-passing network is 100-480 mesh.

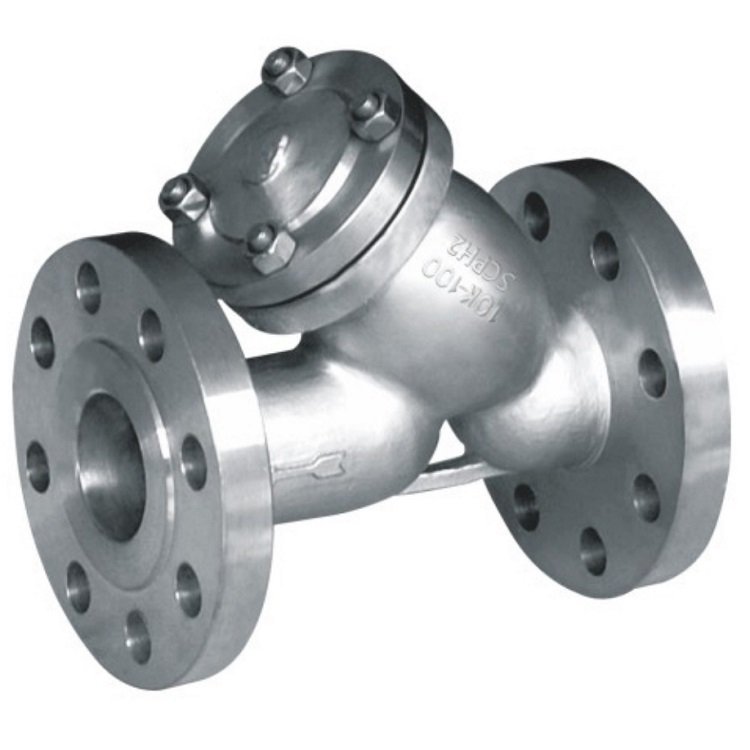

SCPH2 Flange Bonnet JIS 10K Y-Type Strainer
JIS 10K Y-Type Strainer working principle
Y-type filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of the device. When the fluid enters the filter cartridge with a certain size filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it needs to be cleaned, it is only necessary to take out the detachable filter cartridge and reload it after processing. Therefore, it is extremely convenient to use and maintain. Y-type filter, also known as decontamination device and filter valve, is an indispensable device in the pipeline system for conveying medium. Particles, etc. are filtered to protect the fittings on the equipment pipeline from wear and blockage, which can protect the normal operation of the equipment.
